NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

Name: NEMA 8 Non Captive Stepping Motor For 15mNm Educational Robots
Brand: Casun
Price: 13 USD

Best NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots wholesale

Brand Name : Casun

Model Number : 20SHD0302-59T1

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $13-$13.5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29xc14m

current : 0.5Amp

Holding torque : 15mN.m

Steper angle : 1.8degree

Phase : 2

Detent torque : 2mN.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

Through pulse signal control, it is easy to achieve complex motion trajectories. Even at low speeds, stepper motors can maintain high torque output, making them suitable for situations with high requirements for power and accuracy.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Operational for 12 years in China, serving over 800 clients
Supply numerous international certifications for advanced technology and electronics industry equipment
Customizations on request

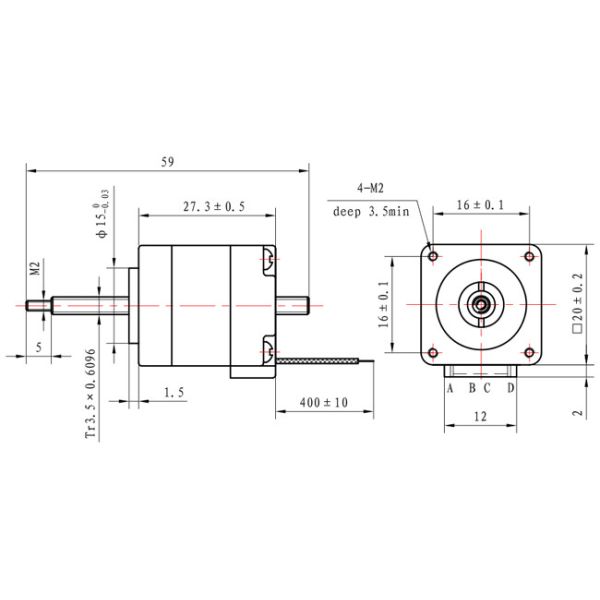

Dimensions

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 Amp
Holding Torque	15 mN.m
Resistance	5.1 ohm
Inductance	1.5 mH
Rotor Inertia	2 g-cm²
Motor Weight	0.08 kg
Lead Screw	Tr3.35X0.6096
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
